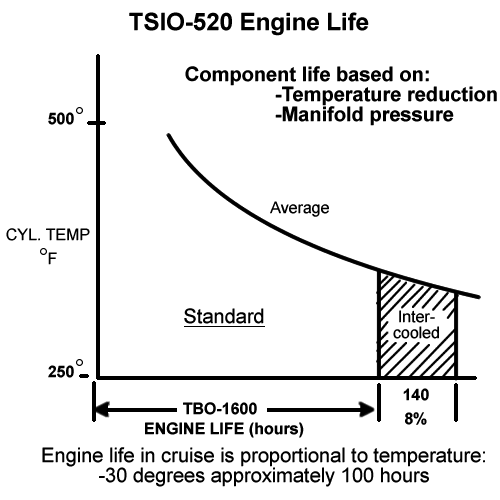

Engine Life Graph
Engine Life Graph


Cruise Option Graph
Cruise Option Graph

Request More Information

Bonanza Induction Air Intercooler


For the Bonanza A36TC and B36TC

Utilizing the same innovation and quality found throughout all our products, the Merlyn Products Next Generation Intercooler is designed to be uncomplicated. A single, slender induction air inlet is installed on the left hand side of the lower cowling, keeping exterior alterations to a minimum. Simple efficient ducting and exits help to keep the installation time down so you spend more time in the air and less time in the hanger.

The Merlyn Concept:

  • Ease of Installation – 10 to 12 hours
  • Same efficient inlet and exit style
  • Simplified efficient ducting
  • Updated core and manifold design
  • No increase in maintenance
  • Recovery of lost installed horsepower
  • No reduction in manifold pressure for take-off
  • Better performance

Basic Cooler Effectivity:

  • 3000’ or below 61% Effective
  • 15000’ or below 54% Effective
  • 20000” or below 50% Effective

Real COOL !!!:

  • 32 ° Margins on CHTs
  • 19 ° Margins on Oil Temperature
  • 140 ° Drop in temperature in climb at 15000’

CRITICAL ALTITUDE:

  • 19000’ (265 hp Standard @ 36’ MAP
  • 16800 (299 hp) MPi Intercooled @ 36” MAP
  • Maximum Temperature @ 16800: SIT = 140 °
  • Sea level SIT @ 100 ° day = 165 °
The Benefits:
  • Normal Take Off
      Sea Level, +15 °C

    • A36TC Standard Ground Roll: 1200 ft
      MPi Intercooled Ground Roll: 1130 ft
    • B36TC Standard Ground Roll: 1200 ft
      MPi Intercooled Ground Roll: 1130 ft
  • Cooler Performance
      Critical Altitude, 17,000 ft
      Engine Induction Air

    • Standard A36TC: 285 °
      MPi Intercooled: 140 °
    • Standard B36TC: 225 °
      MPi Intercooled: 140 °
  • Climb Performance
      Standard Temperature 12,000 feet

    • Standard A36TC: 18.0 min
      MPi Intercooled: 15.5 min
    • Standard B36TC: 18.0 min
      MPi Intercooled: 15.5 min
  • Cruise Power
      Standard Conditions, 28” MP, 2300 RPM, 15000 ft, -12 ° C
      True Airspeed
    • Standard A36TC: 177 KTAS
      MPi Intercooled: 190 KTAS
    • Standard B36TC: 177 KTAS
      MPi Intercooled: 190 KTAS
  • Cruise Option
      Standard Conditions 25” MP, 2300 RPM, 15000 Ft

    • Reduce manifold pressure 3” from Standard Settings
      -Standard A36TC and B36TC: 177 KTAS

Overview of the benefits:

  • Ground Roll Decreased 6%
  • Inlet Temperature Decreased 24%
  • Average Climb Increased 14%
  • True Airspeed Increased 7%
  • Engine Life Potential increased by 8%

Kit Installation Time - approx. 12 hours
Kit Weight - less than 14 pounds

Current Owners

If you already own a Merlyn Products, Inc. Bonanza Intercooler you can purchase an update kit at a reduced price. Get all the same benefits as your current intercooler along with many more improvements from our new design!

ORIGINAL

  • Light Weight
  • Easy Installation
  • Great Performance
  • Good Looks
  • Extended Engine Life*

*Performance improvements or use standard curve, reduce MP 3" and increase engine life potentially 8%

NEW

  • Redesigned Cowling
  • New Core Design
  • Higher Efficiency
  • Improved Performance
  • Remains Easy to Install
  • Improved Ducting
  • Easier for Maintenance

Please contact us for more information.
